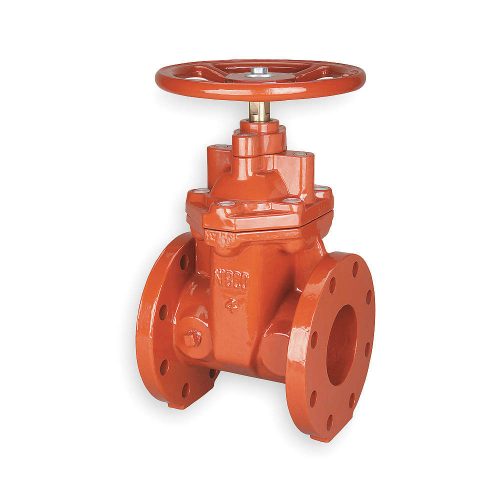

Class 125 Flange Gate Valve, Inlet to Outlet Length: 9″, Max. Fluid Temp.: 160°F
Item Details:
- Company Name: W.W. Grainger, Inc.
- Street: 100 Grainger Parkway
- City: Lake Forest
- State: Illinois
- Country: United States of America
- Zip/Postal Code: 60045-5201
- Expires: 60 days, 21 hours
Item Description:
Low-lead and certified for use in potable water applications, this NIBCO cast-iron gate valve is suitable for use in cold and hot water, gas, HVAC, steam, and other general utility services. Model can be used in most commercial and industrial applications.
• Meets IAPMO R&T and NSF/ANSI 372 standards
• 5-yr. limited manufacturer’s warranty
- Mfr. Model # F619RW 4
- UNSPSC # 40141613
TECHNICAL SPECS
- Item: Gate Valve
- Valve Class: Class 125
- Body Material – Valves: Ductile Iron
- Connection Type: Flange
- Pipe Size – Valves: 4″
- Max. Water Pressure – CWP300 psi
- Valve Max. Fluid Temp.160 Degrees F
- Valve Stem TypeNon-Rising
- Top of Handle to Inlet Center: 13-1/2″
- Inlet to Outlet Length: 9″
- Stem Material: Bronze
- Wedge Material: Resilient
- Handle Material: Ductile Iron
- Handle Type: Hand Wheel
- Standards: AWWA C509
