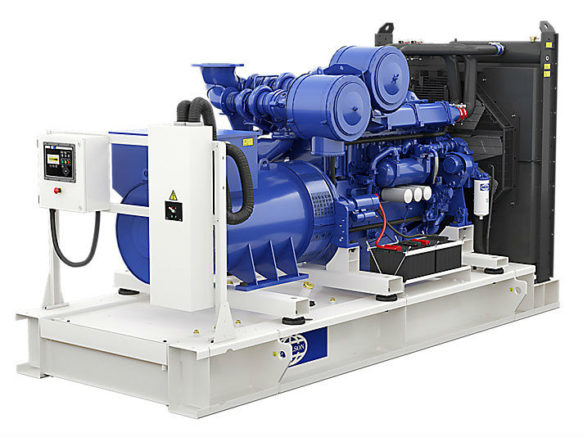

Diesel Generator Sets P730P1 / P800E1
Item Details:
- Company Name: FG Wilson
- Street: FG Wilson 1 Millennium Way Springvale Business Park Springfield Road
- City: Belfast
- State: Other
- Country: United Kingdom
- Zip/Postal Code: BT12 7AL
- Expires: 60 days, 21 hours
Item Description:
OVERVIEW
Proven in the field, this range of generator sets are capable of providing reliable power for critical applications including: mini power stations, data centres, large factories, airports, hospitals, large retail stores, and the financial sector. A 50oC package option is available to ensure efficient operation in high ambient temperatures. Custom-built weatherproof and acoustic enclosures can be tailored to suit any application. Providing personnel access and separate components for cooling, they make generator set installation and maintenance as quick and easy as possible.
GENERATOR SET SPECIFICATIONS
| Minimum Rating | 730.0 kVA / 584.0 kW |
| Maximum Rating | 844.0 kVA / 675.2 kW |
| Frequency | 50Hz or 60Hz |
| Voltage | 220-480 Volts |
| Speed | 1500 or 1800 RPM |
| 50 Hz Prime | 730.0 kVA / 584.0 kW |
| 50 Hz Standby | 800.0 kVA / 640.0 kW |
| 60 Hz Prime | 750.0 kVA 600.0 kW |
| 60 Hz Standby | 844.0 kVA / 675.2 kW |
GENERATOR SET CONFIGURATIONS
| Emissions/Fuel Strategy | Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2. |
ENGINE SPECIFICATIONS
| Engine Model | Perkins® 4006-23TAG2A |
| Bore | 160 mm (6.3 in) |
| Displacement | 22.9l (1398.7 cu. in) |
| Stroke | 190 mm (7.5 in) |
| Compression Ratio | 13.6:1 |
| Governor Type | Electronic |
