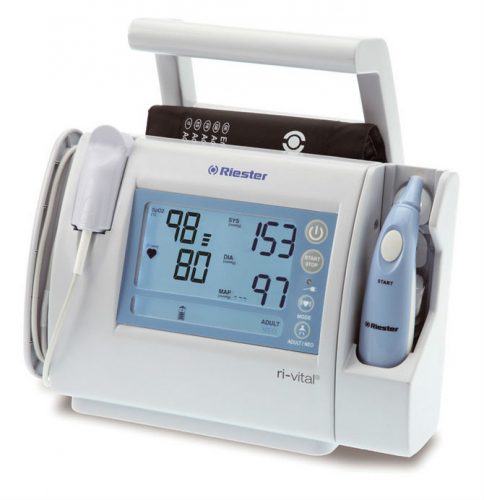

Ri-vital® Spot Check Monitor

Item Description:

Mobile, precise and fast recording of vital signs

Product Details:

• Coloured 4.3“ TFT display (SYS, DIA, MAP, pulse, SpO2, Temp, plethysmogram)
• Temperature alternatively with infrared technology for the ear measurement or with Filac™3000 for the oral/rectal measurement including probe dispenser.
• Memory function for measurement readings and infrared interface for thermo printer
• Shock resistant
• NIBP with mode for adults and neonates.
• Washable and disinfectable cuffs with coiled tube, extendible up to 2 m. Including cuffs for adults and large adults.
• SpO2 sensors with a cable length of 1.2 m (47.2 in) or optional 2.40 m (94.5 in)

Optional with PEARL measuring technology for the use with critical patients (e. g. neonates)

• Easy handling via membrane keyboard (disinfectable) and self-explanatory menu
• Practical storage facilities for accessories (cuffs, sensors, cable, probe covers)
• Efficient and lightweight rechargeable Li-ion battery pack (approx. 250 measurements)
• Portable version or mounted on a stable and smooth running mobile stand with large basket and optional printer holder
• 2 year warranty

Options

• External wireless printer
• Filac™ 3000 predictive oral/rectal thermometer
• Ear thermometer
• Mobile stand
• Full range of blood pressure cuffs and SpO2 sensors

 Pulseoximeter

• Measurement range SpO2:   0..100% SpO2
• Display range:                    0..99% SpO2
• Accuracy: Adults                 +/-2% (70-100%)
  Children              +/-3% (70-100%)
• Pulse measurement range:  30..250 min-1
• Accuracy:                           +/-1%

 Blood pressure

• Measurement range (adult):        2..280 mmHg (Systole)
  15..260 mmHg (MAP)
  10..220 mmHg (Diastole)

•  Measurement range (neonate):  20..155 mmHg (Systole)
  10..130 mmHg (MAP)
  5..110 mmHg (Diastole)

• Overpressure protection:                 300 mmHg

 Other

• Independent protection system against excess pressure acc. to EN1060-3
• Measurement accuracy acc. to EN1060-4:2005
• Deviationfrom average value < 5 mmHg

 Device

• Mains 115/230 V, 50/60 Hz
• Battery ri-accu® L, 7.4 V, Li-ion battery
• Operation time approx. 250 measurements NIBP and SpO2
• Charging time 8 hours
• Mains Adapter AC/DC Adapter plug, 100 V – 240 V
• Display illuminated LCD
• Dimensions
  • with thermometer L 246 mm x W 167 mm x H 232 mm (L 9.69 in x W 6.58 in x H 9.13 in)
  • without thermometer L 203 mm x W 167 mm x H 232 mm (L 7.99 in x W 6.58 in x H 9.13 in)
• Weight
  • with thermometer 1,650 g (3.64 lb)
  • without thermometer 1,500 g (3.31 lb)
• Casing PC and ABS
• Not available in the USA

Accessories:

Blood Pressure Cuffs
Tubes and Connectors for Sphygmomanometers

Downloads:

Vital_Signs_Monitoring_e_Rev0.pdf
GA_ri-vital.pdf
