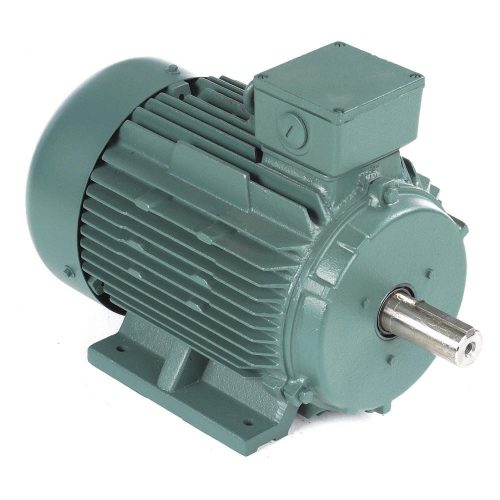

LEESON, 10 HP Premium Efficiency Metric Motor, 3-Phase, 1765 Nameplate RPM, 230/460 Voltage, Frame DF132M
Item Details:
- Company Name: W.W. Grainger, Inc.
- Street: 100 Grainger Parkway
- City: Lake Forest
- State: Illinois
- Country: United States of America
- Zip/Postal Code: 60045-5201
- Contact Number: 1-800-472-4643
- Expires: 60 days, 21 hours
Item Description:
Steel fan cover and low-noise fan maximize airflow efficiency. Inverter-Rated Insulation System (IRIS™) provides protection against voltage spikes induced by variable frequency drives. V-seals on both drive end and nondrive end. Terminal boards included. Suitable as replacement motors for machine tools, textile machinery, and other equipment with metric dimensions.
TECHNICAL SPECS
- Item: Premium Efficiency Metric Motor
- Motor Application: General Application
- Motor Design: 3-Phase
- Motor Enclosure Design: Totally Enclosed Fan-Cooled
- HP: 10
- kW: 7.50
- Nameplate RPM: 1765
- Frame: DF132M
- Voltage: 230/460
- Hz: 60/50
- Phase: 3
- Full Load Amps: 24.0/12.0
- Motor Mounting Type: Rigid Base
- Motor Thermal Protection: None
- Ins. Class: F
- Motor Service Factor: 1.15
- Motor Bearings: Ball
- Motor Frame Material: Cast Iron
- Max. Ambient Temp.: 40 Degrees C
- Motor Shaft Rotation: CW/CCW
- Shaft Dia.: 28mm
- Shaft Length: 60mm
- Motor Efficiency Group: NEMA Premium Efficient
- Nominal Efficiency: 91.7%
- CC Number: CC005A
- Duty: Continuous
- RPM Range: 1701-1800
- Standards: UL (E57948), CSA (LR62104), CE, IEC and NEMA
COMPLIANCE AND RESTRICTIONS
- NEMA Premium Efficient
- 91.7
- CC005A
