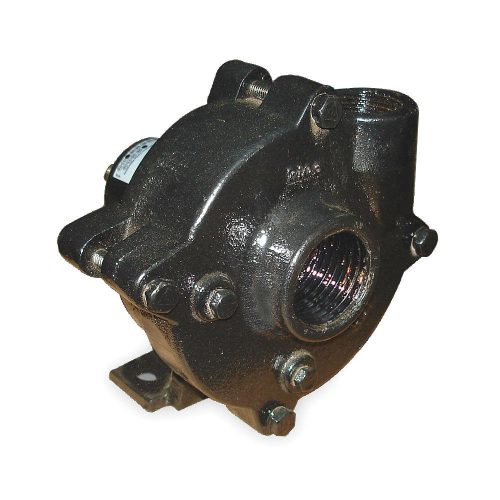

Pedestal Pump, 1 HP Required, 1-1/2 Inlet (In.), 1-1/4 Outlet (In.)

Pedestal Pump, 1 HP Required, 1-1/2 Inlet (In.), 1-1/4 Outlet (In.)

Item Details:

  • Company Name: W.W. Grainger, Inc.
  • Street: 100 Grainger Parkway
  • City: Lake Forest
  • State: Illinois
  • Country: United States of America
  • Zip/Postal Code: 60045-5201
  • Expires: 60 days, 21 hours

Email to a friend

← Go Back
  • Item listed by: on 2017-07-23

    Item Description:

    Dayton unit was made to pump continuously, producing high flow rates under low-head conditions. Designed for continuous low pressure circulation and transfer of liquids, utility , boiler feed, general transfer, filtration, cooling towers, condensate return, marine applications, fountains, boosters, water circulation, irrigation, spraying systems, jockey pump service, chemical processing, aggressive liquid applications, and other general purpose pumping compatible with component materials where no suction lift or no self priming is required.
    • Mfr. Model # 2ZWX6
    • Catalog Page # 2694
    • UNSPSC # 40151716

    TECHNICAL SPECS

    • Item: Pedestal Pump
    • HP Required: 1
    • Inlet (In.): 1-1/2
    • Wetted Materials: Cast Iron, Buna-N, Carbon, Ceramic, SS
    • Impeller Material: Cast-Iron
    • Housing Material: Cast Iron
    • Seal Material: Buna-N
    • GPM of Water @ 10 Ft. of Head: 88
    • GPM of Water @ 15 Ft. of Head: 82
    • GPM of Water @ 20 Ft. of Head: 77
    • GPM of Water @ 30 Ft. of Head: 64
    • GPM of Water @ 40 Ft. of Head: 50
    • GPM of Water @ 50 Ft. of Head:29
    • Max. Specific Gravity: 1.0
    • Impeller Type: Semi Open
    • Bearing Type: Ball
    • Duty: Continuous
    • Port Rotation: 4 Position
    • Manufacturers Warranty Length: 1 Year
    • For Use With: Nonflammable and Nonabrasive Liquids
    • Includes: Complete Pump with Mounting Base. No Motor or Drive Couplers. Includes Manual
    • Best Efficiency GPM @ Head: 75 @ 38 ft.
    • Height: 6-3/4″
    • Inlet: 1-1/2″
    • Inlet Pressure: 200 psi
    • Length: 6-3/4″
    • Max. Case Pressure: 200 psi
    • Max. Pressure: 25.1 psi
    • Outlet: 1-1/4″
    • Width: 7-1/4″

    COMPLIANCE AND RESTRICTIONS

    None
