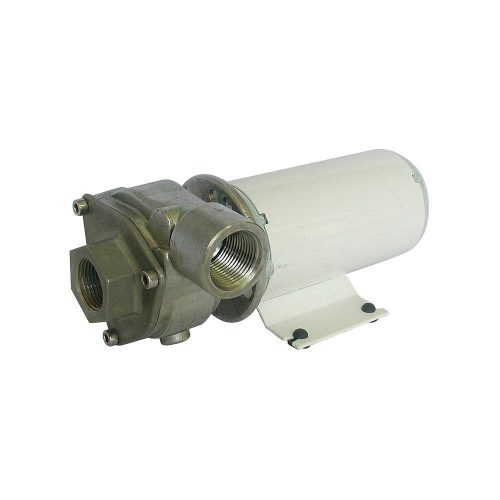

Stainless Steel 1/8 HP Centrifugal Pump, 12VDC Voltage
Item Details:
- Company Name: W.W. Grainger, Inc.
- Street: 100 Grainger Parkway
- City: Lake Forest
- State: Illinois
- Country: United States of America
- Zip/Postal Code: 60045-5201
- Expires: 60 days, 21 hours
Email to a friend
Item Description:
TECHNICAL SPECS
- Item: Centrifugal Pump
- HP: 1/8
- Voltage: 12VDC
- Amps: 8.5
- Inlet: 3/4″ NPT
- Outlet: 3/4″ NPT
- Motor Enclosure: Closed
- Housing Material: Stainless Steel
- Impeller Type: Semi Open
- Impeller Material: Stainless Steel
- Max. Head: 17 ft.
- GPM of Water @ 0 Ft. of Head: 13
- GPM of Water @ 5 Ft. of Head: 11
- GPM of Water @ 10 Ft. of Head: 8
- GPM of Water @ 15 Ft. of Head: 4
- Seal Material: Carbon/Ceramic, Viton, Stainless Steel
- Length: 7-1/8″
- Width: 4-5/16″
- Height: 3-3/8″
- Motor RPM: 5000
- Motor Type: DC
- Wetted Materials: Bronze, Carbon, Ceramic, Buna N, Viton, Stainless Steel
- Max. Liquid Temp.: 180 Degrees F
- GPM @ 1 Ft. of Head: 12.6
- GPH of Water @ 5 Ft. of Head: 660
- GPM @ 7 Feet of Head: 9.8
- GPM of Water @ 20 Ft. of Head: 3
- Best Efficiency Range GPM @ Head: 3 to 16 gpm @ 20 to 10 ft.
- Max. Specific Gravity: 1
- Max. Case Pressure: 200 psi
- Inlet Pressure: 6.5 psi
- Bearing Type: Ball
- Max. Pressure: 9.5 psi
- Max. Dia. Solids: 1/8″
- Manufacturers Warranty Length: 1 yr.
- Includes: Manual
- Duty: Intermittent
- Port Rotation: 180 Degree Increments
- Max. GPM @ Head: 21 @ 0 ft.
- Best Efficiency GPM @ Head: 11 gpm @ 15 ft.
- Min. GPM @ Head: 3 @ 20 ft.
