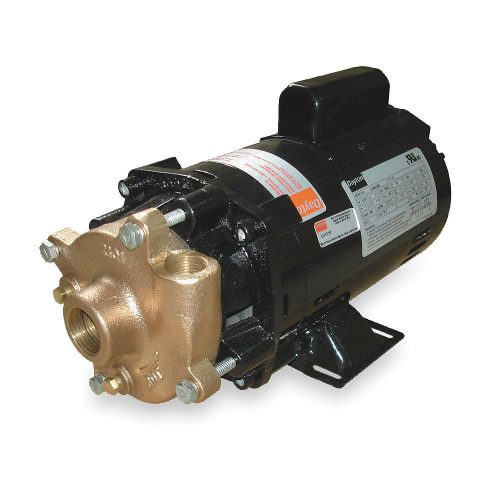

Bronze, Brass 1/3 HP Centrifugal Pump, 1 Phase, 115/230 Voltage
Item Details:
- Company Name: W.W. Grainger, Inc.
- Street: 100 Grainger Parkway
- City: Lake Forest
- State: Illinois
- Country: United States of America
- Zip/Postal Code: 60045-5201
- Expires: 60 days, 21 hours
Item Description:
Dayton close-coupled units pump continuously, producing high flow rates under low-head conditions. Designed for continuous low-pressure circulation and transfer of nonflammable liquids, utility, boiler feed, general transfer, filtration, cooling towers, condensate return, marine applications, fountains, boosters, water circulation, irrigation, spraying systems, jockey pump service, chemical processing, aggressive liquid applications, and other general purpose pumping compatible with pump component materials where no suction lift or self priming is required.
- Mfr. Model # 2ZWR4
- Catalog Page # 2694
- UNSPSC # 40151503
TECHNICAL SPECS
- Item: Centrifugal Pump
- HP: 1/3
- Phase: 1
- Voltage: 115/230
- Amps: 7.5/3.8
- Inlet: 1″ NPT
- Outlet: 3/4″ NPT
- Motor Enclosure: ODP
- Housing Material: Bronze, Brass
- Impeller Type: Semi Open
- Impeller Material: Bronze
- Max. Head: 44
- GPM of Water @ 10 Ft. of Head: 41
- GPM of Water @ 15 Ft. of Head: 37
- Seal Material: Buna-N, Carbon, Ceramic, Stainless Steel
- Length: 13″
- Width: 5-7/8″
- Height: 5-7/8″
- Motor RPM: 3450
- Hz: 60
- Motor Type: Capacitor Start
- Wetted Materials: Bronze, Brass, Buna-N, Carbon, Ceramic, Stainless Steel
- Max. Liquid Temp.: 200 Degrees F
- GPM of Water @ 20 Ft. of Head: 34
- GPM of Water @ 25 Ft. of Head: 29
- GPM of Water @ 30 Ft. of Head: 25
- GPM of Water @ 40 Ft. of Head: 10
- Best Efficiency Range GPM @ Head: 29 to 18 gpm @ 25 to 37 ft.
- Max. Specific Gravity: 1.0
- Max. Case Pressure: 200 psi
- Inlet Pressure: 200 psi
- Bearing Type: Ball
- Max. Pressure: 19.04 psi
- Max. Dia. Solids: 23/64″
- Manufacturers Warranty Length: 1 yr.
- Includes: Manual
- Agency Compliance: c UL us
- Duty: Continuous
- Frame: 56J
- Port Rotation: 4 Position Increments
- Max. GPM @ Head: 41 gpm @ 10 ft.
- Best Efficiency GPM @ Head: 30 gpm @ 26 ft.
- Min. GPM @ Head: 10 gpm @ 40 ft.
