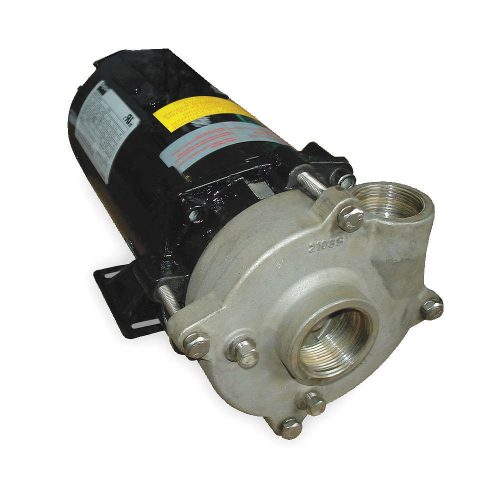

Stainless Steel 1-1/2 HP Centrifugal Pump, 3 Phase, 208-230/460 Voltage
Featured
Item Details:
- Company Name: W.W. Grainger, Inc.
- Street: 100 Grainger Parkway
- City: Lake Forest
- State: Illinois
- Country: United States of America
- Zip/Postal Code: 60045-5201
- Expires: 60 days, 21 hours
Email to a friend
Item Description:
TECHNICAL SPECS
- Item: Centrifugal Pump
- HP: 1-1/2
- Phase: 3
- Voltage: 208-230/460
- Amps: 4.4-3.9/2.0
- Inlet: 1-1/2″ NPT
- Outlet: 1-1/4″ NPT
- Motor Enclosure: ODP
- Housing Material: Stainless Steel
- Impeller Type: Semi Open
- Impeller Material: Stainless Steel
- Max. Head: 67
- GPM of Water @ 10 Ft. of Head: 115
- GPM of Water @ 15 Ft. of Head: 109
- Seal Material: Viton, Carbon, Ceramic, Stainless Steel
- Length: 15″
- Width: 7-1/8″
- Height: 6″
- Motor RPM: 3450
- Hz: 60
- Motor Type: 3-Phase
- Wetted Materials: Stainless Steel, Viton, Carbon, Ceramic
- Max. Liquid Temp.: 200 Degrees F
- GPM of Water @ 20 Ft. of Head: 104
- GPM of Water @ 25 Ft. of Head: 99
- GPM of Water @ 30 Ft. of Head: 94
- GPM of Water @ 40 Ft. of Head: 81
- GPM of Water @ 50 Ft. of Head: 64
- GPM of Water @ 60 Ft. of Head: 40
- Best Efficiency Range GPM @ Head: 55 to 99 gpm @ 55 to 25 ft.
- Max. Specific Gravity: 1.0
- Max. Case Pressure: 200 psi
- Inlet Pressure: 200 psi
- Bearing Type: Ball
- Max. Pressure: 29.00 psi
- Max. Dia. Solids: 1/2″
- Manufacturers Warranty Length: 1 yr.
- Includes: Manual
- Agency Compliance: c UL us
- Duty: Continuous
- Frame: 56J
- Port Rotation: 4 Position Increments
- Max. GPM @ Head: 115 gpm @ 10 ft.
- Best Efficiency GPM @ Head: 72 gpm @ 44 ft.
- Min. GPM @ Head: 40 gpm @ 60 ft.
