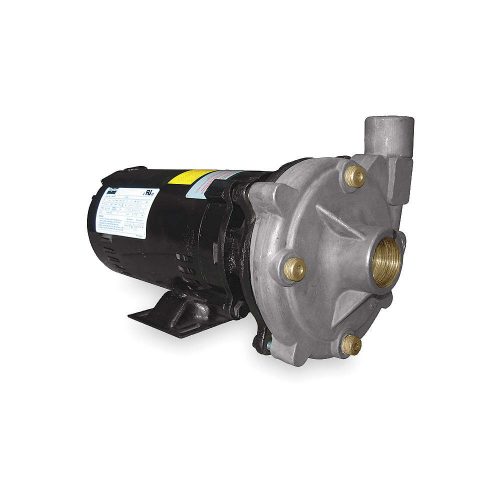

Stainless Steel 1 HP Centrifugal Pump, 208-230/460VAC Voltage, 3.7-3.2/1.6 Amps
Item Details:
- Company Name: W.W. Grainger, Inc.
- Street: 100 Grainger Parkway
- City: Lake Forest
- State: Illinois
- Country: United States of America
- Zip/Postal Code: 60045-5201
- Expires: 60 days, 21 hours
Item Description:
Dayton close-coupled units pump continuously, producing high flow rates under low-head conditions. Designed for continuous low-pressure circulation and transfer of nonflammable liquids, utility, boiler feed, general transfer, filtration, cooling towers, condensate return, marine applications, fountains, boosters, water circulation, irrigation, spraying systems, jockey pump service, chemical processing, aggressive liquid applications, and other general purpose pumping compatible with pump component materials where no suction lift or self priming is required.
- Mfr. Model # 2ZXK9
- Catalog Page # 2694
- UNSPSC # 40151503
TECHNICAL SPECS
- Item: Centrifugal Pump
- Housing Material: Stainless Steel
- HP: 1
- Phase: 3
- Voltage: 208-230/460VAC
- Amps: 3.7-3.2/1.6
- Hz: 60
- Inlet: 1-1/4″
- Outlet: 1″
- Motor Enclosure: ODP
- Motor RPM: 3450
- Motor Type: ODP
- Impeller Type: Closed
- Impeller Material: Stainless Steel
- Max. Dia. Solids: 13/64″
- Seal Material: Viton
- Max. Liquid Temp.: 200 Degrees F
- GPM of Water @ 10 Ft. of Head: 59
- GPM of Water @ 15 Ft. of Head: 57
- GPM of Water @ 20 Ft. of Head: 55
- GPM of Water @ 25 Ft. of Head: 53
- GPM of Water @ 30 Ft. of Head: 51
- GPM of Water @ 40 Ft. of Head: 47
- GPM of Water @ 50 Ft. of Head: 43
- GPM of Water @ 60 Ft. of Head: 38
- GPM of Water @ 70 Ft. of Head: 34
- GPM of Water @ 80 Ft. of Head: 28
- GPM of Water @ 90 Ft. of Head: 23
- GPM of Water @ 100 Ft. of Head: 13
- GPM of Water @ 110 Ft. of Head: 3
- Max. Head: 112 ft.
- Max. Specific Gravity: 1.0
- Wetted Materials: SS, Viton, Carbon, Ceramic
- Max. Case Pressure: 200 psi
- Inlet Pressure: 200 psi
- Max. Pressure: 48 psi
- Bearing Type: Ball
- Manufacturers Warranty Length: 1 yr.
- Length: 15-1/2″
- Width: 8″
- Height8-1/2″
- Includes: Manual
- Agency Compliance: UL Approval in Motor
- Duty: Continuous
- Frame: 56J
- Port Rotation: 4 Position Increments
- Best Efficiency GPM @ Head:34 @ 70 ft.
