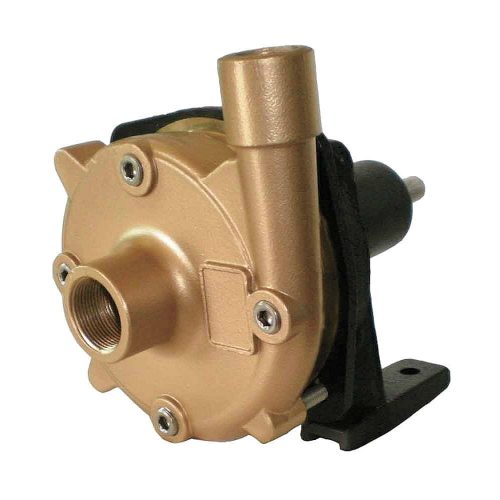

Centrifugal Pump Head, 1-1/2 HP Required, 1-1/4 Inlet (In.), 1 Outlet (In.)
Item Details:
- Company Name: W.W. Grainger, Inc.
- Street: 100 Grainger Parkway
- City: Lake Forest
- State: Illinois
- Country: United States of America
- Zip/Postal Code: 60045-5201
- Expires: 60 days, 21 hours
Email to a friend
Item Description:
TECHNICAL SPECS
- Item: Centrifugal Pump Head
- HP Required: 1-1/2
- Inlet (In.): 1-1/4
- Wetted Materials: Bronze ,SUS316 Carbon, Ceramic, 304 SS, Viton
- Impeller Material: 316 SS
- Housing Material: Bronze
- Seal Material: Carbon, Ceramic, Viton, Stainless Steel
- GPM of Water @ 5 Ft. of Head: 56
- GPM of Water @ 10 Ft. of Head: 55.7
- GPM of Water @ 15 Ft. of Head: 54.6
- GPM of Water @ 20 Ft. of Head: 53.3
- GPM of Water @ 30 Ft. of Head: 49.5
- GPM of Water @ 40 Ft. of Head: 46.3
- GPM of Water @ 50 Ft. of Head: 42
- GPM of Water @ 60 Ft. of Head: 37.6
- GPM of Water @ 70 Ft. of Head: 32
- GPM of Water @ 80 Ft. of Head: 25.8
- Max. Specific Gravity: 1.0
- Impeller Type: Closed
- Bearing Type: Ball
- Duty: Continuous
- Manufacturers Warranty Length: 1 Year
- For Use With: Clear, Non-Abrasive, Non-Flammable Liquids Compatible with Pump Components
- Best Efficiency GPM @ Head: 37.6 @ 60 ft.
- Height: 9″
- Inlet: 1-1/4″
- Inlet Pressure: 106 psi
- Length: 11-7/8″
- Max. Case Pressure: 150 psi
- Max. Dia. Solids: 1/8
- Max. Head: 103 ft.
- Max. Pressure: 44 psi
- Outlet: 1″
- Width: 7-15/16″
