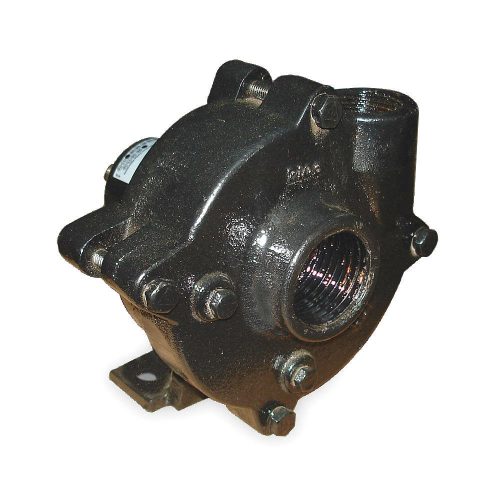

Pedestal Pump, 3 HP Required, 2 Inlet (In.), 1-1/2 Outlet (In.)
Item Details:
- Company Name: W.W. Grainger, Inc.
- Street: 100 Grainger Parkway
- City: Lake Forest
- State: Illinois
- Country: United States of America
- Zip/Postal Code: 60045-5201
- Expires: 60 days, 21 hours
Email to a friend
Item Description:
- Mfr. Model # 2ZWX9
- Catalog Page # 2694
- UNSPSC # 40151716
TECHNICAL SPECS
- Item: Pedestal Pump
- HP Required: 3
- Inlet (In.): 2
- Wetted Materials: Cast Iron, Buna-N, Carbon, Ceramic, SS
- Impeller Material: Cast-Iron
- Housing Material: Cast Iron
- Seal Material: Buna-N
- GPM of Water @ 10 Ft. of Head: 170
- GPM of Water @ 15 Ft. of Head: 166
- GPM of Water @ 20 Ft. of Head: 162
- GPM of Water @ 30 Ft. of Head: 146
- GPM of Water @ 40 Ft. of Head: 130
- GPM of Water @ 50 Ft. of Head: 110
- GPM of Water @ 60 Ft. of Head: 82
- GPM of Water @ 70 Ft. of Head: 35
- Max. Specific Gravity: 1.0
- Impeller Type: Semi Open
- Bearing Type: Ball
- Duty: Continuous
- Port Rotation: 4 Position
- Manufacturers Warranty Length: 1 Year
- For Use With: Nonflammable and Nonabrasive Liquids
- Includes: Complete Pump with Mounting Base. No Motor or Drive Couplers. Includes Manual
- Best Efficiency GPM @ Head: 95 GM @ 57 FT.
- Height: 7-1/4″
- Inlet: 2″
- Inlet Pressure: 200 psi
- Length: 7-3/4″
- Max. Case Pressure: 200 psi
- Max. Pressure: 32 psi
- Outlet: 1-1/2″
- Width: 7-1/2″
COMPLIANCE AND RESTRICTIONS
None
