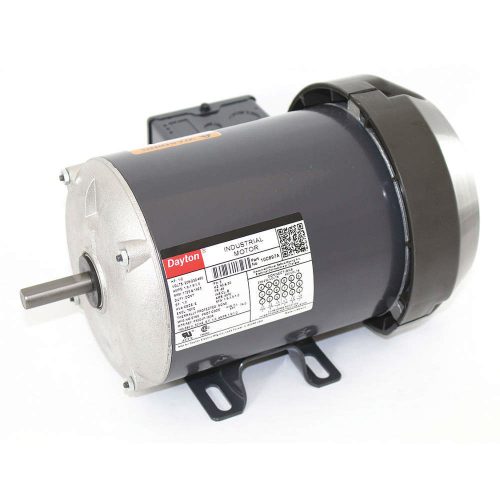

Dayton 1/2 HP General Purpose Motor, 3-Phase, 1725 Nameplate RPM, Voltage 208-230/460, Frame 48
Featured
Item Details:
- Company Name: W.W. Grainger, Inc.
- Street: 100 Grainger Parkway
- City: Lake Forest
- State: Illinois
- Country: United States of America
- Zip/Postal Code: 60045-5201
- Expires: 60 days, 21 hours
Email to a friend
Item Description:
- Mfr. Model # 10C897
- Catalog Page # 15
- UNSPSC # 26101612
TECHNICAL SPECS
- Item: General Purpose Motor
- Motor Application: General Application
- Motor Design: 3-Phase
- Motor Enclosure Design: Totally Enclosed Fan-Cooled
- HP: 1/2
- Nameplate RPM: 1725
- Frame: 48
- Voltage: 208-230/460
- Hz: 60/50
- Phase: 3
- Full Load Amps: 1.9/1.0
- No. of Speeds: 1
- Motor Mounting Type: Rigid Base
- Motor Mounting Position: All Angle
- Motor Thermal Protection: None
- Ins. Class: B
- Motor Service Factor: 1.00
- Motor Bearings: Ball
- Motor Frame Material: Rolled Steel
- Max. Ambient Temp.: 40 Degrees C
- Motor Shaft Rotation: CW/CCW
- Shaft Dia.: 1/2″
- Shaft Length: 1-1/2″
- Length Less Shaft: 9-13/16″
- Overall Length: 11-5/16″
- Motor Shaft Design: Flat
- RPM Range: 1701-1800
- Standards: UL Recognized (E47479), CSA Certified (258501)
- Duty: Continuous
- Motor Efficiency Group: Standard Efficient
- Nominal Efficiency: 74.0%
- Inverter Rated: Yes
- Includes: Conduit Box
- Manufacturers Warranty Length: 1 yr.
- RPM Group: 1701-1800
