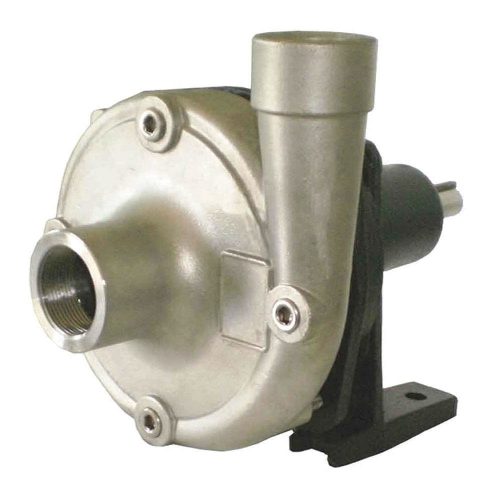

Centrifugal Pump Head, 5 HP Required, 1-1/2 Inlet (In.), 1-1/4 Outlet (In.)
Item Details:
- Company Name: W.W. Grainger, Inc.
- Street: 100 Grainger Parkway
- City: Lake Forest
- State: Illinois
- Country: United States of America
- Zip/Postal Code: 60045-5201
- Expires: 60 days, 18 hours
Email to a friend
Item Description:
TECHNICAL SPECS
- Item: Centrifugal Pump Head
- HP Required: 5
- Inlet (In.): 1-1/2
- Wetted Materials: SUS316,Carbon, Ceramic, 304 SS, Viton
- Impeller Material: 316 SS
- Housing Material: Stainless steel
- Seal Material: Carbon, Ceramic, Viton, Stainless Steel
- GPM of Water @ 5 Ft. of Head: 105
- GPM of Water @ 10 Ft. of Head: 104
- GPM of Water @ 15 Ft. of Head: 102
- GPM of Water @ 20 Ft. of Head: 101
- GPM of Water @ 30 Ft. of Head: 96
- GPM of Water @ 40 Ft. of Head: 93
- GPM of Water @ 50 Ft. of Head: 88
- GPM of Water @ 60 Ft. of Head: 82
- GPM of Water @ 70 Ft. of Head: 75
- GPM of Water @ 80 Ft. of Head: 68
- Max. Specific Gravity: 1.0
- Impeller Type: Closed
- Bearing Type: Ball
- Duty: Continuous
- Manufacturers Warranty Length: 1 Year
- For Use With: Clear, Non-Abrasive, Non-Flammable Liquids Compatible with Pump Components
- Best Efficiency GPM @ Head: 68 @ 80 ft.
- Height: 9″
- Inlet: 1-1/2″
- Inlet Pressure: 92 psi
- Length: 12-1/8″
- Max. Case Pressure: 150 psi
- Max. Dia. Solids: 1/8
- Max. Head: 135 ft.
- Max. Pressure: 58 psi
- Outlet: 1-1/4″
- Width: 8-3/8″
COMPLIANCE AND RESTRICTIONS
None
DOCUMENTATION
