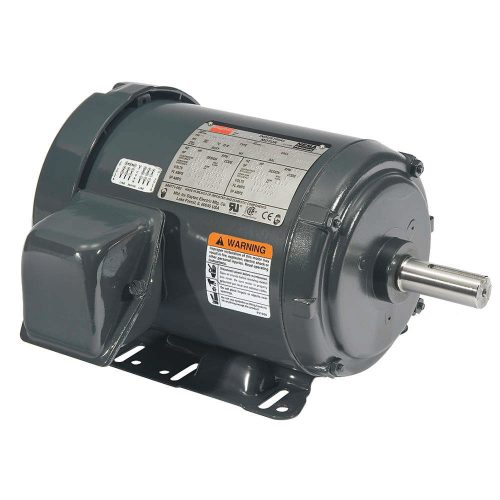

Dayton 2 HP General Purpose Motor, 3-Phase, 1750 Nameplate RPM, Voltage 208-230/460, Frame 143-5T/56HZ
Item Details:
- Company Name: W.W. Grainger, Inc.
- Street: 100 Grainger Parkway
- City: Lake Forest
- State: Illinois
- Country: United States of America
- Zip/Postal Code: 60045-5201
- Expires: 60 days, 21 hours
Item Description:
- Mfr. Model # 2NKY3
- Catalog Page # 15
- UNSPSC # 26101604
TECHNICAL SPECS
- Item: General Purpose Motor
- Motor Application: General Application
- Motor Design: 3-Phase
- Motor Enclosure Design: Totally Enclosed Fan-Cooled
- HP2
- Nameplate RPM: 1750
- Frame: 143-5T/56HZ
- Voltage: 208-230/460
- Hz: 60/50
- Phase: 3
- Full Load Amps: 5.8/2.9
- No. of Speeds: 1
- Motor Mounting Type: Rigid Base
- Motor Mounting Position: All Angle
- Motor Thermal Protection: None
- Ins. Class: F
- Motor Service Factor: 1.25
- Motor Bearings: Ball
- Motor Frame Material: Steel
- Max. Ambient Temp.: 40 Degrees C
- Motor Shaft Rotation: CW/CCW
- Shaft Dia.: 7/8″
- Shaft Length: 2-1/4″
- Length Less Shaft: 10-3/8″
- Overall Length: 12-3/4″
- Motor Shaft Design: Keyed
- RPM Range: 1701-1800
- Standards: UL, CSA, CE
- Duty: Continuous
- Motor Efficiency Group: NEMA Premium Efficient
- Nominal Efficiency: 86.5%
- CC Number: CC060A
- Inverter Rated: Yes
- Manufacturers Warranty Length: 3 yr.
- Green Certification or Other Recognition: NEMA Premium Rated
- Green Environmental Attribute: Product Contributes To Reducing Energy Consumption
- RPM Group: 1701-1800
COMPLIANCE AND RESTRICTIONS
-
Green Product – This item has been designated by the manufacturer as an environmentally preferable product (EPP) because this item is NEMA Premium Rated.
