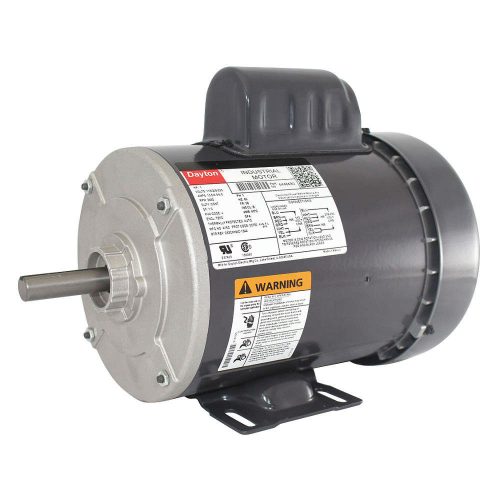

1 HP General Purpose Motor, Capacitor-Start, 3450 Nameplate RPM, Voltage 115/208-230, Frame 56
Featured
Item Details:
- Company Name: W.W. Grainger, Inc.
- Street: 100 Grainger Parkway
- City: Lake Forest
- State: Illinois
- Country: United States of America
- Zip/Postal Code: 60045-5201
- Expires: 60 days, 21 hours
Email to a friend
Item Description:
- Mfr. Model # 6K484
- Catalog Page # 13
- UNSPSC # 26101602
TECHNICAL SPECS
- Item: General Purpose Motor
- Motor Application: General Application
- Motor Design: Capacitor-Start
- Motor Enclosure Design: Totally Enclosed Fan-Cooled
- HP: 1
- Nameplate RPM: 3450
- Frame: 56
- Voltage: 115/208-230
- Hz: 60
- Phase: 1
- Full Load Amps: 13.6/6.9-6.8
- No. of Speeds: 1
- Motor Mounting Type: Rigid Base
- Motor Mounting Position: All Angle
- Motor Thermal Protection: Auto
- Ins. Class: B
- Motor Service Factor: 1.00
- Motor Bearings: Ball
- Motor Frame Material: Steel
- Max. Ambient Temp.: 40 Degrees C
- Motor Shaft Rotation: CW/CCW
- Shaft Dia.: 5/8″
- Shaft Length: 1-7/8″
- Length Less Shaft: 10-1/2″
- Overall Length: 12-3/8″
- Motor Shaft Design: Keyed
- RPM Range: 3001-3600
- Standards: UL Recognized (E37403), CSA Certified (258501)
- Duty: Continuous
- Motor Efficiency Group: Standard Efficient
- Nominal Efficiency: 67.2%
- Includes: Conduit Box
- Manufacturers Warranty Length: 1 yr.
- RPM Group: 3001-3600
COMPLIANCE AND RESTRICTIONS
None
DOCUMENTATION
